Fed-DSATUR Decompositions

Home

Choose a dataset from the sidebar.

You can also contact us.

Contact

You can get in touch with us on the following emails:

  • Simón Castillo: scastillo [at] ldc [dot] usb [dot] ve
  • Guillermo Palma: gpalma [at] ldc [dot] usb [dot] ve
  • Maria-Esther Vidal: mvidal [at] ldc [dot] usb [dot] ve
  • Gabriela Montoya: Gabriela [dot] Montoya [at] univ-nantes [dot] fr
  • Maribel Acosta: maribel [dot] acosta [at] kit [dot] edu

ANAPSID

Fed-DSATUR is implemented on top of ANAPSID, which can be downloaded from its repository at GitHub.

Test queries

We used the following queries to benchmark the performance of Fed-DSATUR:

In the following sections you will find the decompositions (the query that was actually evaluated by ANAPSID) and the graph mapping found by Fed-DSATUR.

FedBench

CD1
Number of nodes
2
Number of edges
0
Colors used
1
Graph
Open
Decomposition
SELECT ?predicate ?object
WHERE {
 {
       SERVICE <http://159.90.11.58:7007/sparql> {
           ?subject <http://www.w3.org/2002/07/owl#sameAs> <http://dbpedia.org/resource/Barack_Obama> .
           ?subject ?predicate ?object
       }
 }
  UNION
 {
       {
         {
             SERVICE <http://159.90.11.58:7026/sparql> {
                 <http://dbpedia.org/resource/Barack_Obama> ?predicate ?object
             }
         }
          UNION
         {
             SERVICE <http://159.90.11.58:7021/sparql> {
                 <http://dbpedia.org/resource/Barack_Obama> ?predicate ?object
             }
         }
       }
        UNION
       {
         {
             SERVICE <http://159.90.11.58:7024/sparql> {
                 <http://dbpedia.org/resource/Barack_Obama> ?predicate ?object
             }
         }
          UNION
         {
           {
               SERVICE <http://159.90.11.58:7020/sparql> {
                   <http://dbpedia.org/resource/Barack_Obama> ?predicate ?object
               }
           }
            UNION
           {
               SERVICE <http://159.90.11.58:7022/sparql> {
                   <http://dbpedia.org/resource/Barack_Obama> ?predicate ?object
               }
           }
         }
       }
 }
CD2
Number of nodes
3
Number of edges
2
Colors used
2
Graph
Open
Decomposition
SELECT ?party ?page
WHERE {
   {
       SERVICE <http://159.90.11.58:7021/sparql> {
           <http://dbpedia.org/resource/Barack_Obama> <http://dbpedia.org/ontology/party> ?party
       }
   }
     .
   {
     SERVICE <http://159.90.11.58:7007/sparql> {
         ?x <http://data.nytimes.com/elements/topicPage> ?page .
         ?x <http://www.w3.org/2002/07/owl#sameAs> <http://dbpedia.org/resource/Barack_Obama>
     }
   }
}
CD3
Number of nodes
5
Number of edges
8
Colors used
3
Graph
Open
Decomposition
SELECT ?president ?party ?page
WHERE {
   {
       SERVICE <http://159.90.11.58:7022/sparql> {
           ?president <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/President>
       }
   }
     .
   {
     {
       SERVICE <http://159.90.11.58:7021/sparql> {
           ?president <http://dbpedia.org/ontology/nationality> <http://dbpedia.org/resource/United_States> .
           ?president <http://dbpedia.org/ontology/party> ?party
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7007/sparql> {
           ?x <http://data.nytimes.com/elements/topicPage> ?page .
           ?x <http://www.w3.org/2002/07/owl#sameAs> ?president
       }
     }
   }
}
CD4
Number of nodes
5
Number of edges
3
Colors used
2
Graph
Open
Decomposition
SELECT ?actor ?news
WHERE {
   {
     SERVICE <http://159.90.11.58:7006/sparql> {
         ?film <http://data.linkedmdb.org/resource/movie/actor> ?actor .
         ?film <http://purl.org/dc/terms/title> 'Tarzan'
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7007/sparql> {
         ?y <http://data.nytimes.com/elements/topicPage> ?news .
         ?y <http://www.w3.org/2002/07/owl#sameAs> ?x .
         ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
     }
   }
}
n
CD5
Number of nodes
4
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT ?film ?director ?genre
WHERE {
   {
     SERVICE <http://159.90.11.58:7021/sparql> {
         ?film <http://dbpedia.org/ontology/director> ?director .
         ?director <http://dbpedia.org/ontology/nationality> <http://dbpedia.org/resource/Italy>
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7006/sparql> {
         ?x <http://data.linkedmdb.org/resource/movie/genre> ?genre .
         ?x <http://www.w3.org/2002/07/owl#sameAs> ?film
     }
   }
}
n
CD6
Number of nodes
4
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT ?name ?location ?news
WHERE {
   {
       SERVICE <http://159.90.11.58:7010/sparql> {
           ?location <http://www.geonames.org/ontology#parentFeature> ?germany .
           ?germany <http://www.geonames.org/ontology#name> 'Federal Republic of Germany'
       }
   }
     .
   {
     SERVICE <http://159.90.11.58:7003/sparql> {
         ?artist <http://xmlns.com/foaf/0.1/based_near> ?location .
         ?artist <http://xmlns.com/foaf/0.1/name> ?name
     }
   }
}
CD7
Number of nodes
4
Number of edges
1
Colors used
2
Graph
Open
Decomposition
SELECT ?location ?news
WHERE {
   {
     {
         SERVICE <http://159.90.11.58:7017/sparql> {
             ?location <http://www.geonames.org/ontology#parentFeature> ?parent .
             ?parent <http://www.geonames.org/ontology#name> 'California'
         }
     }
      UNION
     {
         SERVICE <http://159.90.11.58:7007/sparql> {
             ?location <http://www.geonames.org/ontology#parentFeature> ?parent .
             ?parent <http://www.geonames.org/ontology#name> 'California'
         }
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7007/sparql> {
         ?y <http://data.nytimes.com/elements/topicPage> ?news .
         ?y <http://www.w3.org/2002/07/owl#sameAs> ?location
     }
   }
}
LD1
Number of nodes
3
Number of edges
0
Colors used
1
Graph
Open
Decomposition
prefix rdfs:<http://www.w3.org/2000/01/rdf-schema#>
SELECT *
WHERE {
   SERVICE <http://159.90.11.58:7003/sparql> {
       ?paper <http://data.semanticweb.org/ns/swc/ontology#isPartOf> <http://data.semanticweb.org/conference/iswc/2008/poster_demo_proceedings> .
       ?paper <http://swrc.ontoware.org/ontology#author> ?p .
       ?p rdfs:label ?n
   }
}
LD2
Number of nodes
3
Number of edges
0
Colors used
1
Graph
Open
Decomposition
SELECT *
WHERE {
   SERVICE <http://159.90.11.58:7003/sparql> {
       ?paper <http://data.semanticweb.org/ns/swc/ontology#isPartOf> ?proceedings .
       ?paper <http://swrc.ontoware.org/ontology#author> ?p .
       ?proceedings <http://data.semanticweb.org/ns/swc/ontology#relatedToEvent> <http://data.semanticweb.org/conference/eswc/2010>
   }
}
LD3
Number of nodes
4
Number of edges
2
Colors used
2
Graph
Open
Decomposition
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix rdfs:<http://www.w3.org/2000/01/rdf-schema#>
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7003/sparql> {
         ?paper <http://data.semanticweb.org/ns/swc/ontology#isPartOf> <http://data.semanticweb.org/conference/iswc/2008/poster_demo_proceedings> .
         ?paper <http://swrc.ontoware.org/ontology#author> ?p
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7003/sparql> {
         ?p rdfs:label ?n .
         ?p owl:sameAs ?x
     }
   }
}
LD4
Number of nodes
5
Number of edges
3
Colors used
2
Graph
Open
Decomposition
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7003/sparql> {
         ?role <http://data.semanticweb.org/ns/swc/ontology#isRoleAt> <http://data.semanticweb.org/conference/eswc/2010> .
         ?role <http://data.semanticweb.org/ns/swc/ontology#heldBy> ?p
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7003/sparql> {
         ?paper <http://data.semanticweb.org/ns/swc/ontology#isPartOf> ?proceedings .
         ?paper <http://swrc.ontoware.org/ontology#author> ?p .
         ?proceedings <http://data.semanticweb.org/ns/swc/ontology#relatedToEvent> <http://data.semanticweb.org/conference/eswc/2010>
     }
   }
}
LD5
Number of nodes
3
Number of edges
2
Colors used
2
Graph
Open
Decomposition
prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbprop:<http://dbpedia.org/property/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix rdf:<http://www.w3.org/1999/02/22-rdf-syntax-ns#>
prefix rdfs:<http://www.w3.org/2000/01/rdf-schema#>
prefix skos:<http://www.w3.org/2004/02/skos/core#>
prefix factbook:<http://www4.wiwiss.fu-berlin.de/factbook/ns#>
prefix mo:<http://purl.org/ontology/mo/>
prefix dc:<http://purl.org/dc/elements/1.1/>
prefix fb:<http://rdf.freebase.com/ns/>
SELECT *
WHERE {
   {
       SERVICE <http://159.90.11.58:7022/sparql> {
           ?a rdf:type dbowl:Album
       }
   }
     .
   {
     SERVICE <http://159.90.11.58:7021/sparql> {
         ?a dbowl:artist dbpedia:Michael_Jackson .
         ?a foaf:name ?n
     }
   }
}
LD6
Number of nodes
5
Number of edges
9
Colors used
3
Graph
Open
Decomposition
prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix linkedMDB:<http://data.linkedmdb.org/resource/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7021/sparql> {
         ?film dbowl:director ?director .
         ?director dbowl:nationality dbpedia:Italy
     }
   }
     .
   {
     {
       SERVICE <http://159.90.11.58:7003/sparql> {
           ?x foaf:based_near ?y .
           ?x owl:sameAs ?film
       }
     }
       .
     {
       {
         {
             SERVICE <http://159.90.11.58:7015/sparql> {
                 ?y <http://www.geonames.org/ontology#officialName> ?n
             }
         }
          UNION
         {
           {
               SERVICE <http://159.90.11.58:7008/sparql> {
                   ?y <http://www.geonames.org/ontology#officialName> ?n
               }
           }
            UNION
           {
               SERVICE <http://159.90.11.58:7016/sparql> {
                   ?y <http://www.geonames.org/ontology#officialName> ?n
               }
           }
         }
       }
        UNION
       {
         {
           {
             {
                 SERVICE <http://159.90.11.58:7011/sparql> {
                     ?y <http://www.geonames.org/ontology#officialName> ?n
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7013/sparql> {
                     ?y <http://www.geonames.org/ontology#officialName> ?n
                 }
             }
           }
            UNION
           {
             {
                 SERVICE <http://159.90.11.58:7017/sparql> {
                     ?y <http://www.geonames.org/ontology#officialName> ?n
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7012/sparql> {
                     ?y <http://www.geonames.org/ontology#officialName> ?n
                 }
             }
           }
         }
          UNION
         {
           {
             {
                 SERVICE <http://159.90.11.58:7010/sparql> {
                     ?y <http://www.geonames.org/ontology#officialName> ?n
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7009/sparql> {
                     ?y <http://www.geonames.org/ontology#officialName> ?n
                 }
             }
           }
            UNION
           {
             {
                 SERVICE <http://159.90.11.58:7018/sparql> {
                     ?y <http://www.geonames.org/ontology#officialName> ?n
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7014/sparql> {
                     ?y <http://www.geonames.org/ontology#officialName> ?n
                 }
             }
           }
         }
       }
     }
   }
LD7
Number of nodes
2
Number of edges
0
Colors used
1
Graph
Open
Decomposition
prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix linkedMDB:<http://data.linkedmdb.org/resource/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix gn:<http://www.geonames.org/ontology#>
SELECT *
WHERE {
   SERVICE <http://159.90.11.58:7009/sparql> {
       ?x gn:parentFeature <http://sws.geonames.org/2921044/> .
       ?x gn:name ?n
   }
}
LD8
Number of nodes
5
Number of edges
5
Colors used
3
Graph
Open
Decomposition
prefix kegg:<http://bio2rdf.org/ns/kegg#>
prefix drugbank:<http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix skos:<http://www.w3.org/2004/02/skos/core#>
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7004/sparql> {
         ?drug drugbank:drugCategory <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/micronutrient> .
         ?drug drugbank:casRegistryNumber ?id .
         ?drug owl:sameAs ?s
     }
   }
     .
   {
     {
         SERVICE <http://159.90.11.58:7006/sparql> {
             ?s skos:subject ?sub
         }
     }
       .
     {
       {
           SERVICE <http://159.90.11.58:7003/sparql> {
               ?s foaf:name ?o
           }
       }
        UNION
       {
         {
             SERVICE <http://159.90.11.58:7005/sparql> {
                 ?s foaf:name ?o
             }
         }
          UNION
         {
             SERVICE <http://159.90.11.58:7020/sparql> {
                 ?s foaf:name ?o
             }
         }
       }
     }
   }
LD9
Number of nodes
3
Number of edges
3
Colors used
3
Graph
Open
Decomposition
None
LD10
Number of nodes
3
Number of edges
2
Colors used
2
Graph
Open
Decomposition
None
LD11
Number of nodes
11
Number of edges
7
Colors used
3
Graph
Open
Decomposition
prefix geo-ont:<http://www.geonames.org/ontology#>
prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbprop:<http://dbpedia.org/property/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix rdf:<http://www.w3.org/1999/02/22-rdf-syntax-ns#>
prefix rdfs:<http://www.w3.org/2000/01/rdf-schema#>
prefix skos:<http://www.w3.org/2004/02/skos/core#>
prefix factbook:<http://www4.wiwiss.fu-berlin.de/factbook/ns#>
prefix mo:<http://purl.org/ontology/mo/>
prefix dc:<http://purl.org/dc/elements/1.1/>
SELECT *
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7021/sparql> {
           ?x dbowl:team dbpedia:Eintracht_Frankfurt .
           ?x dbowl:birthDate ?d .
           ?x dbowl:birthPlace ?p
       }
     }
       .
     {
       {
         {
             SERVICE <http://159.90.11.58:7002/sparql> {
                 ?x rdfs:label ?y
             }
         }
          UNION
         {
             SERVICE <http://159.90.11.58:7006/sparql> {
                 ?x rdfs:label ?y
             }
         }
       }
        UNION
       {
         {
             SERVICE <http://159.90.11.58:7004/sparql> {
                 ?x rdfs:label ?y
             }
         }
          UNION
         {
             SERVICE <http://159.90.11.58:7001/sparql> {
                 ?x rdfs:label ?y
             }
         }
       }
     }
   }
     .
   {
     {
       {
         {
             SERVICE <http://159.90.11.58:7002/sparql> {
                 ?p rdfs:label ?l
             }
         }
          UNION
         {
             SERVICE <http://159.90.11.58:7020/sparql> {
                 ?p rdfs:label ?l
             }
         }
       }
        UNION
       {
         {
             SERVICE <http://159.90.11.58:7004/sparql> {
                 ?p rdfs:label ?l
             }
         }
          UNION
         {
             SERVICE <http://159.90.11.58:7001/sparql> {
                 ?p rdfs:label ?l
             }
         }
       }
     }
      UNION
     {
       {
           SERVICE <http://159.90.11.58:7006/sparql> {
               ?p rdfs:label ?l
           }
       }
        UNION
       {
         {
             SERVICE <http://159.90.11.58:7026/sparql> {
                 ?p rdfs:label ?l
             }
         }
          UNION
         {
             SERVICE <http://159.90.11.58:7003/sparql> {
                 ?p rdfs:label ?l
             }
         }
       }
     }
   }
LSD1
Number of nodes
1
Number of edges
0
Colors used
1
Graph
Open
Decomposition
SELECT $drug $melt
WHERE {
       SERVICE <http://159.90.11.58:7004/sparql> {
           $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/meltingPoint> $melt
       }
}
LSD2
Number of nodes
2
Number of edges
1
Colors used
2
Graph
Open
Decomposition
SELECT ?predicate ?object
WHERE {
 {
       {
           SERVICE <http://159.90.11.58:7004/sparql> {
               <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugs/DB00201> <http://www.w3.org/2002/07/owl#sameAs> ?caff
           }
       }
         .
       {
         {
           {
             {
               {
                 {
                     SERVICE <http://159.90.11.58:7013/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7018/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
                UNION
               {
                 {
                     SERVICE <http://159.90.11.58:7012/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7002/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
             }
              UNION
             {
               {
                 {
                     SERVICE <http://159.90.11.58:7019/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7004/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
                UNION
               {
                 {
                     SERVICE <http://159.90.11.58:7003/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7009/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
             }
           }
            UNION
           {
             {
               {
                   SERVICE <http://159.90.11.58:7017/sparql> {
                       ?caff ?predicate ?object
                   }
               }
                UNION
               {
                   SERVICE <http://159.90.11.58:7007/sparql> {
                       ?caff ?predicate ?object
                   }
               }
             }
              UNION
             {
               {
                 {
                     SERVICE <http://159.90.11.58:7005/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7006/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
                UNION
               {
                 {
                     SERVICE <http://159.90.11.58:7026/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7021/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
             }
           }
         }
          UNION
         {
           {
             {
                 SERVICE <http://159.90.11.58:7010/sparql> {
                     ?caff ?predicate ?object
                 }
             }
              UNION
             {
               {
                   SERVICE <http://159.90.11.58:7011/sparql> {
                       ?caff ?predicate ?object
                   }
               }
                UNION
               {
                   SERVICE <http://159.90.11.58:7024/sparql> {
                       ?caff ?predicate ?object
                   }
               }
             }
           }
            UNION
           {
             {
               {
                 {
                     SERVICE <http://159.90.11.58:7014/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7025/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
                UNION
               {
                 {
                     SERVICE <http://159.90.11.58:7020/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7022/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
             }
              UNION
             {
               {
                 {
                     SERVICE <http://159.90.11.58:7015/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7001/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
                UNION
               {
                 {
                     SERVICE <http://159.90.11.58:7008/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
                  UNION
                 {
                     SERVICE <http://159.90.11.58:7016/sparql> {
                         ?caff ?predicate ?object
                     }
                 }
               }
             }
           }
         }
       }
 }
  UNION
 {
         SERVICE <http://159.90.11.58:7004/sparql> {
             <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugs/DB00201> ?predicate ?object
         }
 }
LSD3
Number of nodes
5
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT ?Drug ?IntDrug ?IntEffect
WHERE {
   {
       SERVICE <http://159.90.11.58:7022/sparql> {
           ?Drug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
       }
   }
     .
   {
     SERVICE <http://159.90.11.58:7004/sparql> {
         ?Int <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?y .
         ?Int <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?IntDrug .
         ?Int <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/text> ?IntEffect .
         ?y <http://www.w3.org/2002/07/owl#sameAs> ?Drug
     }
   }
}
LSD4
Number of nodes
7
Number of edges
12
Colors used
3
Graph
Open
Decomposition
SELECT ?drugDesc ?cpd ?equation
WHERE {
   {
     SERVICE <http://159.90.11.58:7004/sparql> {
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/cathartics> .
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/description> ?drugDesc
     }
   }
     .
   {
     {
       SERVICE <http://159.90.11.58:7002/sparql> {
           ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
           ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7002/sparql> {
           ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
           ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
       }
     }
   }
}
LSD5
Number of nodes
6
Number of edges
11
Colors used
3
Graph
Open
Decomposition
SELECT $drug $keggUrl $chebiImage
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7004/sparql> {
           $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> $keggDrug .
           $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genericName> $drugBankName .
           $drug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugs>
       }
     }
       .
     {
       {
           SERVICE <http://159.90.11.58:7001/sparql> {
               $keggDrug <http://bio2rdf.org/ns/bio2rdf#url> $keggUrl
           }
       }
        UNION
       {
           SERVICE <http://159.90.11.58:7002/sparql> {
               $keggDrug <http://bio2rdf.org/ns/bio2rdf#url> $keggUrl
           }
       }
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7001/sparql> {
         $chebiDrug <http://bio2rdf.org/ns/bio2rdf#image> $chebiImage .
         $chebiDrug <http://purl.org/dc/elements/1.1/title> $drugBankName
     }
   }
LSD6
Number of nodes
5
Number of edges
6
Colors used
2
Graph
Open
Decomposition
SELECT ?drug ?title
WHERE {
   {
     SERVICE <http://159.90.11.58:7004/sparql> {
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/micronutrient> .
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/casRegistryNumber> ?id
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7002/sparql> {
         ?keggDrug <http://bio2rdf.org/ns/bio2rdf#xRef> ?id .
         ?keggDrug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Drug> .
         ?keggDrug <http://purl.org/dc/elements/1.1/title> ?title
     }
   }
}

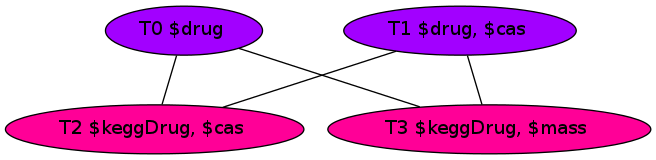

LSD7
Number of nodes
4
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT $drug $transform $mass
WHERE {
   {
       OPTIONAL {
             SERVICE <http://159.90.11.58:7004/sparql> {
                 $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/biotransformation> $transform
             }
       }
   }
    .
   {
         {
           SERVICE <http://159.90.11.58:7004/sparql> {
               $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/affectedOrganism> 'Humans and other mammals' .
               $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/casRegistryNumber> $cas
           }
         }
           .
         {
           SERVICE <http://159.90.11.58:7002/sparql> {
               $keggDrug <http://bio2rdf.org/ns/bio2rdf#mass> $mass .
               $keggDrug <http://bio2rdf.org/ns/bio2rdf#xRef> $cas
               FILTER ($mass > '5')
           }
         }
   }
}
CD1
Number of nodes
2
Number of edges
0
Colors used
1
Graph
Open
Decomposition
SELECT ?predicate ?object
WHERE {
 {
       SERVICE <http://159.90.11.58:7009/sparqlNYT> {
           ?subject <http://www.w3.org/2002/07/owl#sameAs> <http://dbpedia.org/resource/Barack_Obama> .
           ?subject ?predicate ?object
       }
 }
  UNION
 {
         SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
             <http://dbpedia.org/resource/Barack_Obama> ?predicate ?object
         }
 }
}
CD2
Number of nodes
3
Number of edges
2
Colors used
2
Graph
Open
Decomposition
SELECT ?party ?page
WHERE {
   {
       SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
           <http://dbpedia.org/resource/Barack_Obama> <http://dbpedia.org/ontology/party> ?party
       }
   }
     .
   {
     SERVICE <http://159.90.11.58:7009/sparqlNYT> {
         ?x <http://data.nytimes.com/elements/topicPage> ?page .
         ?x <http://www.w3.org/2002/07/owl#sameAs> <http://dbpedia.org/resource/Barack_Obama>
     }
   }
}
CD3
Number of nodes
5
Number of edges
3
Colors used
2
Graph
Open
Decomposition
SELECT ?president ?party ?page
WHERE {
   {
     SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
         ?president <http://dbpedia.org/ontology/nationality> <http://dbpedia.org/resource/United_States> .
         ?president <http://dbpedia.org/ontology/party> ?party .
         ?president <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/President>
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7009/sparqlNYT> {
         ?x <http://data.nytimes.com/elements/topicPage> ?page .
         ?x <http://www.w3.org/2002/07/owl#sameAs> ?president
     }
   }
}
CD4
Number of nodes
5
Number of edges
7
Colors used
2
Graph
Open
Decomposition
SELECT ?actor ?news
WHERE {
   {
     SERVICE <http://159.90.11.58:7006/sparqlLMDB> {
         ?film <http://data.linkedmdb.org/resource/movie/actor> ?actor .
         ?film <http://purl.org/dc/terms/title> 'Tarzan'
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7009/sparqlNYT> {
         ?y <http://data.nytimes.com/elements/topicPage> ?news .
         ?y <http://www.w3.org/2002/07/owl#sameAs> ?x .
         ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
     }
   }
}
CD5
Number of nodes
4
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT ?film ?director ?genre
WHERE {
   {
     SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
         ?film <http://dbpedia.org/ontology/director> ?director .
         ?director <http://dbpedia.org/ontology/nationality> <http://dbpedia.org/resource/Italy>
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7006/sparqlLMDB> {
         ?x <http://data.linkedmdb.org/resource/movie/genre> ?genre .
         ?x <http://www.w3.org/2002/07/owl#sameAs> ?film
     }
   }
}
CD6
Number of nodes
4
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT ?name ?location ?news
WHERE {
   {
     SERVICE <http://159.90.11.58:7008/sparql> {
         ?germany <http://www.geonames.org/ontology#name> 'Federal Republic of Germany' .
         ?location <http://www.geonames.org/ontology#parentFeature> ?germany
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
         ?artist <http://xmlns.com/foaf/0.1/based_near> ?location .
         ?artist <http://xmlns.com/foaf/0.1/name> ?name
     }
   }
}
CD7
Number of nodes
4
Number of edges
1
Colors used
2
Graph
Open
Decomposition
SELECT ?location ?news
WHERE {
   {
     SERVICE <http://159.90.11.58:7008/sparql> {
         ?parent <http://www.geonames.org/ontology#name> 'California' .
         ?location <http://www.geonames.org/ontology#parentFeature> ?parent
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7009/sparqlNYT> {
         ?y <http://data.nytimes.com/elements/topicPage> ?news .
         ?y <http://www.w3.org/2002/07/owl#sameAs> ?location
     }
   }
}
LD1
Number of nodes
3
Number of edges
0
Colors used
2
Graph
Open
Decomposition
prefix rdfs:<http://www.w3.org/2000/01/rdf-schema#>
SELECT *
WHERE {
   SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
       ?paper <http://data.semanticweb.org/ns/swc/ontology#isPartOf> <http://data.semanticweb.org/conference/iswc/2008/poster_demo_proceedings> .
       ?paper <http://swrc.ontoware.org/ontology#author> ?p .
       ?p rdfs:label ?n
   }
}
LD2
Number of nodes
3
Number of edges
0
Colors used
1
Graph
Open
Decomposition
SELECT *
WHERE {
   SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
       ?paper <http://data.semanticweb.org/ns/swc/ontology#isPartOf> ?proceedings .
       ?paper <http://swrc.ontoware.org/ontology#author> ?p .
       ?proceedings <http://data.semanticweb.org/ns/swc/ontology#relatedToEvent> <http://data.semanticweb.org/conference/eswc/2010>
   }
}
LD3
Number of nodes
4
Number of edges
0
Colors used
1
Graph
Open
Decomposition
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix rdfs:<http://www.w3.org/2000/01/rdf-schema#>
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
         ?paper <http://data.semanticweb.org/ns/swc/ontology#isPartOf> <http://data.semanticweb.org/conference/iswc/2008/poster_demo_proceedings> .
         ?paper <http://swrc.ontoware.org/ontology#author> ?p
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
         ?p rdfs:label ?n .
         ?p owl:sameAs ?x
     }
   }
}
LD4
Number of nodes
5
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
         ?role <http://data.semanticweb.org/ns/swc/ontology#isRoleAt> <http://data.semanticweb.org/conference/eswc/2010> .
         ?role <http://data.semanticweb.org/ns/swc/ontology#heldBy> ?p
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
         ?paper <http://data.semanticweb.org/ns/swc/ontology#isPartOf> ?proceedings .
         ?paper <http://swrc.ontoware.org/ontology#author> ?p .
         ?proceedings <http://data.semanticweb.org/ns/swc/ontology#relatedToEvent> <http://data.semanticweb.org/conference/eswc/2010>
     }
   }
}
LD5
Number of nodes
3
Number of edges
0
Colors used
2
Graph
Open
Decomposition

prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbprop:<http://dbpedia.org/property/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix rdf:<http://www.w3.org/1999/02/22-rdf-syntax-ns#>
prefix rdfs:<http://www.w3.org/2000/01/rdf-schema#>
prefix skos:<http://www.w3.org/2004/02/skos/core#>
prefix factbook:<http://www4.wiwiss.fu-berlin.de/factbook/ns#>
prefix mo:<http://purl.org/ontology/mo/>
prefix dc:<http://purl.org/dc/elements/1.1/>
prefix fb:<http://rdf.freebase.com/ns/>
SELECT *
WHERE {
   SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
       ?a dbowl:artist dbpedia:Michael_Jackson .
       ?a rdf:type dbowl:Album .
       ?a foaf:name ?n
   }
}
LD6
Number of nodes
5
Number of edges
7
Colors used
1
Graph
Open
Decomposition

prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix linkedMDB:<http://data.linkedmdb.org/resource/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
         ?film dbowl:director ?director .
         ?director dbowl:nationality dbpedia:Italy
     }
   }
     .
   {
     {
       SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
           ?x foaf:based_near ?y .
           ?x owl:sameAs ?film
       }
     }
       .
     {
         SERVICE <http://159.90.11.58:7008/sparql> {
             ?y <http://www.geonames.org/ontology#officialName> ?n
         }
     }
   }
}
LD7
Number of nodes
2
Number of edges
0
Colors used
3
Graph
Open
Decomposition

prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix linkedMDB:<http://data.linkedmdb.org/resource/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix gn:<http://www.geonames.org/ontology#>
SELECT *
WHERE {
   SERVICE <http://159.90.11.58:7008/sparql> {
       ?x gn:parentFeature <http://sws.geonames.org/2921044/> .
       ?x gn:name ?n
   }
}
LD8
Number of nodes
5
Number of edges
4
Colors used
1
Graph
Open
Decomposition

prefix kegg:<http://bio2rdf.org/ns/kegg#>
prefix drugbank:<http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix skos:<http://www.w3.org/2004/02/skos/core#>
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7004/sparqlDB> {
         ?drug drugbank:drugCategory <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/micronutrient> .
         ?drug drugbank:casRegistryNumber ?id .
         ?drug owl:sameAs ?s
     }
   }
     .
   {
       SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
           ?s foaf:name ?o .
           ?s skos:subject ?sub
       }
   }
}
LD9
Number of nodes
3
Number of edges
2
Colors used
2
Graph
Open
Decomposition
None
LD10
Number of nodes
3
Number of edges
1
Colors used
2
Graph
Open
Decomposition
prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbprop:<http://dbpedia.org/property/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix rdf:<http://www.w3.org/1999/02/22-rdf-syntax-ns#>
prefix skos:<http://www.w3.org/2004/02/skos/core#>
prefix factbook:<http://www4.wiwiss.fu-berlin.de/factbook/ns#>
SELECT *
WHERE {
   {
     SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
         ?n skos:subject <http://dbpedia.org/resource/Category:Chancellors_of_Germany> .
         ?n owl:sameAs ?p2
     }
   }
     .
   {
       SERVICE <http://159.90.11.58:7009/sparqlNYT> {
           ?p2 <http://data.nytimes.com/elements/latest_use> ?u
       }
   }
}
LD11
Number of nodes
5
Number of edges
0
Colors used
2
Graph
Open
Decomposition
prefix geo-ont:<http://www.geonames.org/ontology#>
prefix dbpedia:<http://dbpedia.org/resource/>
prefix dbprop:<http://dbpedia.org/property/>
prefix dbowl:<http://dbpedia.org/ontology/>
prefix foaf:<http://xmlns.com/foaf/0.1/>
prefix owl:<http://www.w3.org/2002/07/owl#>
prefix rdf:<http://www.w3.org/1999/02/22-rdf-syntax-ns#>
prefix rdfs:<http://www.w3.org/2000/01/rdf-schema#>
prefix skos:<http://www.w3.org/2004/02/skos/core#>
prefix factbook:<http://www4.wiwiss.fu-berlin.de/factbook/ns#>
prefix mo:<http://purl.org/ontology/mo/>
prefix dc:<http://purl.org/dc/elements/1.1/>
SELECT *
WHERE {
   SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
       ?x dbowl:team dbpedia:Eintracht_Frankfurt .
       ?x dbowl:birthDate ?d .
       ?x dbowl:birthPlace ?p .
       ?x rdfs:label ?y .
       ?p rdfs:label ?l
   }
}
LSD1
Number of nodes
1
Number of edges
0
Colors used
1
Graph
Open
Decomposition
SELECT $drug $melt
WHERE {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/meltingPoint> $melt
       }
}
LSD2
Number of nodes
2
Number of edges
1
Colors used
1
Graph
Open
Decomposition
SELECT ?predicate ?object
WHERE {
 {
       {
           SERVICE <http://159.90.11.58:7004/sparqlDB> {
               <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugs/DB00201> <http://www.w3.org/2002/07/owl#sameAs> ?caff
           }
       }
         .
       {
         {
           {
             {
                 SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                     ?caff ?predicate ?object
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
                     ?caff ?predicate ?object
                 }
             }
           }
            UNION
           {
             {
                 SERVICE <http://159.90.11.58:7006/sparqlLMDB> {
                     ?caff ?predicate ?object
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7005/sparqlJamendo> {
                     ?caff ?predicate ?object
                 }
             }
           }
         }
          UNION
         {
           {
             {
                 SERVICE <http://159.90.11.58:7008/sparql> {
                     ?caff ?predicate ?object
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7009/sparqlNYT> {
                     ?caff ?predicate ?object
                 }
             }
           }
            UNION
           {
             {
               {
                   SERVICE <http://159.90.11.58:7001/sparqlChebi> {
                       ?caff ?predicate ?object
                   }
               }
                UNION
               {
                   SERVICE <http://159.90.11.58:7010/sparqlSP2B> {
                       ?caff ?predicate ?object
                   }
               }
             }
              UNION
             {
               {
                   SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
                       ?caff ?predicate ?object
                   }
               }
                UNION
               {
                   SERVICE <http://159.90.11.58:7004/sparqlDB> {
                       ?caff ?predicate ?object
                   }
               }
             }
           }
         }
       }
 }
  UNION
 {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugs/DB00201> ?predicate ?object
         }
 }
LSD3
Number of nodes
5
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT ?Drug ?IntDrug ?IntEffect
WHERE {
   {
       SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
           ?Drug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
       }
   }
     .
   {
     SERVICE <http://159.90.11.58:7004/sparqlDB> {
         ?Int <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?y .
         ?Int <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?IntDrug .
         ?Int <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/text> ?IntEffect .
         ?y <http://www.w3.org/2002/07/owl#sameAs> ?Drug
     }
   }
}
LSD4
Number of nodes
7
Number of edges
13
Colors used
2
Graph
Open
Decomposition
SELECT ?drugDesc ?cpd ?equation
WHERE {
   {
     SERVICE <http://159.90.11.58:7004/sparqlDB> {
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/cathartics> .
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/description> ?drugDesc
     }
   }
     .
   {
     {
       SERVICE <http://159.90.11.58:7002/sparqlKegg> {
           ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
           ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7002/sparqlKegg> {
           ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
           ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
       }
     }
   }
}
LSD5
Number of nodes
6
Number of edges
11
Colors used
3
Graph
Open
Decomposition
SELECT $drug $keggUrl $chebiImage
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> $keggDrug .
           $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genericName> $drugBankName .
           $drug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugs>
       }
     }
       .
     {
       {
           SERVICE <http://159.90.11.58:7001/sparqlChebi> {
               $keggDrug <http://bio2rdf.org/ns/bio2rdf#url> $keggUrl
           }
       }
        UNION
       {
           SERVICE <http://159.90.11.58:7002/sparqlKegg> {
               $keggDrug <http://bio2rdf.org/ns/bio2rdf#url> $keggUrl
           }
       }
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7001/sparqlChebi> {
         $chebiDrug <http://bio2rdf.org/ns/bio2rdf#image> $chebiImage .
         $chebiDrug <http://purl.org/dc/elements/1.1/title> $drugBankName
     }
   }
LSD6
Number of nodes
5
Number of edges
6
Colors used
3
Graph
Open
Decomposition
SELECT ?drug ?title
WHERE {
   {
     SERVICE <http://159.90.11.58:7004/sparqlDB> {
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/micronutrient> .
         ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/casRegistryNumber> ?id
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7002/sparqlKegg> {
         ?keggDrug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Drug> .
         ?keggDrug <http://bio2rdf.org/ns/bio2rdf#xRef> ?id .
         ?keggDrug <http://purl.org/dc/elements/1.1/title> ?title
     }
   }
}
LSD7
Number of nodes
4
Number of edges
4
Colors used
2
Graph
Open
Decomposition
SELECT $drug $transform $mass
WHERE {
   {
       OPTIONAL {
             SERVICE <http://159.90.11.58:7004/sparqlDB> {
                 $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/biotransformation> $transform
             }
       }
   }
    .
   {
         {
           SERVICE <http://159.90.11.58:7004/sparqlDB> {
               $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/affectedOrganism> 'Humans and other mammals' .
               $drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/casRegistryNumber> $cas
           }
         }
           .
         {
           SERVICE <http://159.90.11.58:7002/sparqlKegg> {
               $keggDrug <http://bio2rdf.org/ns/bio2rdf#mass> $mass .
               $keggDrug <http://bio2rdf.org/ns/bio2rdf#xRef> $cas
               FILTER ($mass > '5')
           }
         }
   }
}

Additional Queries

C1
Number of nodes
16
Number of edges
83
Colors used
7
Graph
Open
Decomposition
SELECT DISTINCT ?drug ?enzyme ?reaction
WHERE {
   {
     {
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug3 .
             ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
             ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antihypertensiveAgents>
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug1 .
             ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antibiotics>
         }
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7004/sparql> {
           ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug2 .
           ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antiviralAgents>
       }
     }
   }
     .
   {
     {
       {
           SERVICE <http://159.90.11.58:7022/sparql> {
               ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
           }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
             ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5
         }
       }
     }
       .
     {
       {
         SERVICE <http://159.90.11.58:7002/sparql> {
             ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
             ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7002/sparql> {
             ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
             ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
         }
       }
     }
   }
}
C2
Number of nodes
12
Number of edges
36
Colors used
4
Graph
Open
Decomposition
SELECT DISTINCT ?drug ?drug1 ?drug2 ?drug3 ?drug4
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7004/sparql> {
           ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug1 .
           ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antibiotics>
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7004/sparql> {
           ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug3 .
           ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antihypertensiveAgents>
       }
     }
   }
     .
   {
     {
       SERVICE <http://159.90.11.58:7004/sparql> {
           ?I4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug4 .
           ?I4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/anti-bacterialAgents>
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7004/sparql> {
           ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug2 .
           ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antiviralAgents>
       }
     }
   }
C3
Number of nodes
13
Number of edges
41
Colors used
6
Graph
Open
Decomposition
SELECT DISTINCT ?drug ?enzyme ?reaction
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7004/sparql> {
           ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/302> .
           ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7004/sparql> {
           ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/53> .
           ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d
       }
     }
   }
     .
   {
     {
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/105> .
             ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/59> .
             ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d
         }
       }
     }
       .
     {
       {
         SERVICE <http://159.90.11.58:7002/sparql> {
             ?keggDrug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Drug> .
             ?keggDrug <http://bio2rdf.org/ns/bio2rdf#xRef> ?id .
             ?keggDrug <http://purl.org/dc/elements/1.1/title> ?title
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/casRegistryNumber> ?id
         }
       }
     }
   }
C4
Number of nodes
19
Number of edges
79
Colors used
6
Graph
Open
Decomposition
SELECT DISTINCT ?d ?drug5 ?cpd ?enzyme ?equation
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7002/sparql> {
           ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
           ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7002/sparql> {
           ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
           ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
       }
     }
   }
     .
   {
     {
       {
           SERVICE <http://159.90.11.58:7022/sparql> {
               ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
           }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d1 .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
             ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5 .
             ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5
         }
       }
     }
       .
     {
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/261> .
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr
         }
       }
     }
   }
C5
Number of nodes
6
Number of edges
3
Colors used
2
Graph
Open
Decomposition
SELECT DISTINCT ?drug5 ?drug6
WHERE {
   {
     SERVICE <http://159.90.11.58:7004/sparql> {
         ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/319> .
         ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/270> .
         ?drug1 <http://www.w3.org/2002/07/owl#sameAs> ?drug5
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7004/sparql> {
         ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug1 .
         ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug .
         ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug6
     }
   }
}
C6
Number of nodes
2
Number of edges
1
Colors used
2
Graph
Open
Decomposition
SELECT DISTINCT ?drug
WHERE {
   {
     {
         OPTIONAL {
             SERVICE <http://159.90.11.58:7004/sparql> {
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/indication> ?i .
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/biotransformation> ?b .
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/inchiKey> ?k .
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/synonym> ?s .
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/toxicity> ?t
             }
         }
     }
      .
     {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/micronutrient> .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/dietarySupplement> .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/non-essentialAminoAcids>
         }
     }
   }
    .
   {
     {
         OPTIONAL {
             {
                 SERVICE <http://159.90.11.58:7022/sparql> {
                     ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
                 }
             }
               .
             {
                 SERVICE <http://159.90.11.58:7022/sparql> {
                     ?drug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
                 }
             }
         }
     }
      .
     {
         OPTIONAL {
             {
               {
                 SERVICE <http://159.90.11.58:7002/sparql> {
                     ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
                     ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
                 }
               }
                 .
               {
                   SERVICE <http://159.90.11.58:7004/sparql> {
                       ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd
                   }
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7002/sparql> {
                   ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
                   ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
               }
             }
         }
     }
   }
C7
Number of nodes
7
Number of edges
14
Colors used
4
Graph
Open
Decomposition
SELECT DISTINCT ?d ?drug5 ?cpd ?enzyme ?equation
WHERE {
   {
       OPTIONAL {
           {
             {
                 SERVICE <http://159.90.11.58:7022/sparql> {
                     ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
                 }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
                   ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5
               }
             }
           }
             .
           {
             {
               SERVICE <http://159.90.11.58:7002/sparql> {
                   ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
                   ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7002/sparql> {
                   ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
                   ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
               }
             }
           }
       }
   }
    .
   {
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/261> .
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr
         }
       }
   }
C8
Number of nodes
7
Number of edges
14
Colors used
4
Graph
Open
Decomposition
SELECT DISTINCT ?drug1
WHERE {
   {
       OPTIONAL {
           {
             {
                 SERVICE <http://159.90.11.58:7022/sparql> {
                     ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
                 }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
                   ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5
               }
             }
           }
             .
           {
             {
               SERVICE <http://159.90.11.58:7002/sparql> {
                   ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
                   ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7002/sparql> {
                   ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
                   ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
               }
             }
           }
       }
   }
    .
   {
       {
         SERVICE <http://159.90.11.58:7004/sparql> {
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/673> .
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o
         }
       }
         .
       {
         {
           SERVICE <http://159.90.11.58:7004/sparql> {
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr
           }
         }
           .
         {
           SERVICE <http://159.90.11.58:7004/sparql> {
               ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o .
               ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/synonym> ?o1
           }
         }
       }
   }
C9
Number of nodes
40
Number of edges
500
Colors used
9
Graph
Open
Decomposition
SELECT DISTINCT ?drug ?drug1 ?drug2 ?drug3 ?drug4 ?d1
WHERE {
   {
       OPTIONAL {
           {
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug1 .
                   ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug3 .
                   ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug
               }
             }
           }
             .
           {
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?I4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug4 .
                   ?I4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug2 .
                   ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug
               }
             }
           }
       }
   }
    .
   {
       {
         {
           SERVICE <http://159.90.11.58:7004/sparql> {
               ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antiviralAgents> .
               ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o2
           }
         }
           .
         {
           SERVICE <http://159.90.11.58:7004/sparql> {
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr2
           }
         }
       }
         .
       {
         {
           {
             SERVICE <http://159.90.11.58:7004/sparql> {
                 ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antihypertensiveAgents> .
                 ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o3
             }
           }
             .
           {
             SERVICE <http://159.90.11.58:7004/sparql> {
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr3
             }
           }
         }
           .
         {
           {
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antibiotics> .
                   ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o1
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g2
               }
             }
           }
             .
           {
             {
               {
                 SERVICE <http://159.90.11.58:7004/sparql> {
                     ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/anti-bacterialAgents> .
                     ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o4
                 }
               }
                 .
               {
                 SERVICE <http://159.90.11.58:7004/sparql> {
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr4
                 }
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparql> {
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o1 .
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o2 .
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o3 .
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o4
               }
             }
           }
         }
       }
   }
C10
Number of nodes
4
Number of edges
5
Colors used
3
Graph
Open
Decomposition
SELECT ?title ?actor ?news ?director ?film ?n ?genre
WHERE {
   {
       OPTIONAL {
           {
               OPTIONAL {
                   {
                     {
                       {
                         {
                             SERVICE <http://159.90.11.58:7011/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                          UNION
                         {
                             SERVICE <http://159.90.11.58:7009/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                       }
                        UNION
                       {
                         {
                             SERVICE <http://159.90.11.58:7007/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                          UNION
                         {
                             SERVICE <http://159.90.11.58:7003/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                       }
                     }
                      UNION
                     {
                       {
                           SERVICE <http://159.90.11.58:7006/sparql> {
                               ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                           }
                       }
                        UNION
                       {
                         {
                             SERVICE <http://159.90.11.58:7008/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                          UNION
                         {
                             SERVICE <http://159.90.11.58:7016/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                       }
                     }
                   }
                    UNION
                   {
                     {
                       {
                         {
                             SERVICE <http://159.90.11.58:7002/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                          UNION
                         {
                             SERVICE <http://159.90.11.58:7013/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                       }
                        UNION
                       {
                         {
                             SERVICE <http://159.90.11.58:7004/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                          UNION
                         {
                             SERVICE <http://159.90.11.58:7012/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                       }
                     }
                      UNION
                     {
                       {
                         {
                             SERVICE <http://159.90.11.58:7017/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                          UNION
                         {
                             SERVICE <http://159.90.11.58:7020/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                       }
                        UNION
                       {
                         {
                             SERVICE <http://159.90.11.58:7010/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                          UNION
                         {
                             SERVICE <http://159.90.11.58:7018/sparql> {
                                 ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                             }
                         }
                       }
                     }
                   }
               }
           }
            .
           {
               {
                   SERVICE <http://159.90.11.58:7007/sparql> {
                       ?y <http://data.nytimes.com/elements/topicPage> ?news
                   }
               }
                 .
               {
                 {
                     SERVICE <http://159.90.11.58:7006/sparql> {
                         ?film <http://data.linkedmdb.org/resource/movie/genre> ?genre
                     }
                 }
                   .
                 {
                   SERVICE <http://159.90.11.58:7021/sparql> {
                       ?x <http://dbpedia.org/ontology/director> ?director .
                       ?director <http://dbpedia.org/ontology/nationality> ?n
                   }
                 }
               }
           }
       }
   }
    .
   {
       SERVICE <http://159.90.11.58:7006/sparql> {
           ?film <http://data.linkedmdb.org/resource/movie/actor> ?actor .
           ?film <http://data.linkedmdb.org/resource/movie/production_company> <http://data.linkedmdb.org/resource/production_company/15> .
           ?film <http://purl.org/dc/terms/title> 'Tarzan' .
           ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
       }
   }
C1
Number of nodes
16
Number of edges
85
Colors used
7
Graph
Open
Decomposition
SELECT DISTINCT ?drug ?enzyme ?reaction
WHERE {
   {
     {
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug3 .
             ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
             ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antihypertensiveAgents>
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug1 .
             ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antibiotics>
         }
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug2 .
           ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antiviralAgents>
       }
     }
   }
     .
   {
     {
       {
           SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
               ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
           }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
             ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5
         }
       }
     }
       .
     {
       {
         SERVICE <http://159.90.11.58:7002/sparqlKegg> {
             ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
             ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7002/sparqlKegg> {
             ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
             ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
         }
       }
     }
   }
C2
Number of nodes
12
Number of edges
38
Colors used
4
Graph
Open
Decomposition
SELECT DISTINCT ?drug ?drug1 ?drug2 ?drug3 ?drug4
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug1 .
           ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antibiotics>
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug3 .
           ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antihypertensiveAgents>
       }
     }
   }
     .
   {
     {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           ?I4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug4 .
           ?I4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/anti-bacterialAgents>
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug2 .
           ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug .
           ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antiviralAgents>
       }
     }
   }
C3
Number of nodes
13
Number of edges
42
Colors used
6
Graph
Open
Decomposition
SELECT DISTINCT ?drug ?enzyme ?reaction
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/302> .
           ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7004/sparqlDB> {
           ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/53> .
           ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d
       }
     }
   }
     .
   {
     {
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/105> .
             ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/59> .
             ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d
         }
       }
     }
       .
     {
       {
         SERVICE <http://159.90.11.58:7002/sparqlKegg> {
             ?keggDrug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Drug> .
             ?keggDrug <http://bio2rdf.org/ns/bio2rdf#xRef> ?id .
             ?keggDrug <http://purl.org/dc/elements/1.1/title> ?title
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/casRegistryNumber> ?id
         }
       }
     }
   }
C4
Number of nodes
19
Number of edges
79
Colors used
6
Graph
Open
Decomposition
SELECT DISTINCT ?d ?drug5 ?cpd ?enzyme ?equation
WHERE {
   {
     {
       SERVICE <http://159.90.11.58:7002/sparqlKegg> {
           ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
           ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
       }
     }
       .
     {
       SERVICE <http://159.90.11.58:7002/sparqlKegg> {
           ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
           ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
       }
     }
   }
     .
   {
     {
       {
           SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
               ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
           }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> ?d1 .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
             ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5
         }
       }
     }
       .
     {
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/261> .
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr
         }
       }
     }
   }
C5
Number of nodes
6
Number of edges
3
Colors used
2
Graph
Open
Decomposition
SELECT DISTINCT ?drug5 ?drug6
WHERE {
   {
     SERVICE <http://159.90.11.58:7004/sparqlDB> {
         ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/319> .
         ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/270> .
         ?drug1 <http://www.w3.org/2002/07/owl#sameAs> ?drug5
     }
   }
     .
   {
     SERVICE <http://159.90.11.58:7004/sparqlDB> {
         ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug1 .
         ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug .
         ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug6
     }
   }
}
C6
Number of nodes
5
Number of edges
4
Colors used
3
Graph
Open
Decomposition
SELECT DISTINCT ?drug
WHERE {
   {
     {
         OPTIONAL {
             SERVICE <http://159.90.11.58:7004/sparqlDB> {
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/indication> ?i .
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/biotransformation> ?b .
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/inchiKey> ?k .
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/synonym> ?s .
                 ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/toxicity> ?t
             }
         }
     }
      .
     {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/micronutrient> .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/dietarySupplement> .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/non-essentialAminoAcids>
         }
     }
   }
    .
   {
     {
         OPTIONAL {
             {
                 SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
                     ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
                 }
             }
               .
             {
                 SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
                     ?drug <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
                 }
             }
         }
     }
      .
     {
         OPTIONAL {
             {
               {
                 SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                     ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
                     ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
                 }
               }
                 .
               {
                   SERVICE <http://159.90.11.58:7004/sparqlDB> {
                       ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd
                   }
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                   ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
                   ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
               }
             }
         }
     }
   }
C7
Number of nodes
7
Number of edges
15
Colors used
4
Graph
Open
Decomposition
SELECT DISTINCT ?d ?drug5 ?cpd ?enzyme ?equation
WHERE {
   {
       OPTIONAL {
           {
             {
                 SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
                     ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
                 }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
                   ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5
               }
             }
           }
             .
           {
             {
               SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                   ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
                   ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                   ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
                   ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
               }
             }
           }
       }
   }
    .
   {
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/261> .
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o .
             ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o
         }
       }
         .
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps .
             ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr
         }
       }
   }
C8
Number of nodes
7
Number of edges
14
Colors used
4
Graph
Open
Decomposition
SELECT DISTINCT ?drug1
WHERE {
   {
       OPTIONAL {
           {
             {
                 SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
                     ?drug5 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://dbpedia.org/ontology/Drug>
                 }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/keggCompoundId> ?cpd .
                   ?drug <http://www.w3.org/2002/07/owl#sameAs> ?drug5
               }
             }
           }
             .
           {
             {
               SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                   ?enzyme <http://bio2rdf.org/ns/kegg#xSubstrate> ?cpd .
                   ?enzyme <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://bio2rdf.org/ns/kegg#Enzyme>
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                   ?reaction <http://bio2rdf.org/ns/kegg#xEnzyme> ?enzyme .
                   ?reaction <http://bio2rdf.org/ns/kegg#equation> ?equation
               }
             }
           }
       }
   }
    .
   {
       {
         SERVICE <http://159.90.11.58:7004/sparqlDB> {
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/possibleDiseaseTarget> <http://www4.wiwiss.fu-berlin.de/diseasome/resource/diseases/673> .
             ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o
         }
       }
         .
       {
         {
           SERVICE <http://159.90.11.58:7004/sparqlDB> {
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps .
               ?o <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr
           }
         }
           .
         {
           SERVICE <http://159.90.11.58:7004/sparqlDB> {
               ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o .
               ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/synonym> ?o1
           }
         }
       }
   }
C9
Number of nodes
40
Number of edges
503
Colors used
9
Graph
Open
Decomposition
SELECT DISTINCT ?drug ?drug1 ?drug2 ?drug3 ?drug4 ?d1
WHERE {
   {
       OPTIONAL {
           {
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug1 .
                   ?I1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug3 .
                   ?I3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug
               }
             }
           }
             .
           {
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?I4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug4 .
                   ?I4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug2> ?drug2 .
                   ?I2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/interactionDrug1> ?drug
               }
             }
           }
       }
   }
    .
   {
       {
         {
           SERVICE <http://159.90.11.58:7004/sparqlDB> {
               ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antiviralAgents> .
               ?drug2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o2
           }
         }
           .
         {
           SERVICE <http://159.90.11.58:7004/sparqlDB> {
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps2 .
               ?o2 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr2
           }
         }
       }
         .
       {
         {
           {
             SERVICE <http://159.90.11.58:7004/sparqlDB> {
                 ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antihypertensiveAgents> .
                 ?drug3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o3
             }
           }
             .
           {
             SERVICE <http://159.90.11.58:7004/sparqlDB> {
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps3 .
                 ?o3 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr3
             }
           }
         }
           .
         {
           {
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/antibiotics> .
                   ?drug1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o1
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr1 .
                   ?o1 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g2
               }
             }
           }
             .
           {
             {
               {
                 SERVICE <http://159.90.11.58:7004/sparqlDB> {
                     ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/drugCategory> <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugcategory/anti-bacterialAgents> .
                     ?drug4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o4
                 }
               }
                 .
               {
                 SERVICE <http://159.90.11.58:7004/sparqlDB> {
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/genbankIdGene> ?g4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/locus> ?l4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/molecularWeight> ?mw4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/hprdId> ?hp4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/swissprotName> ?sn4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/proteinSequence> ?ps4 .
                     ?o4 <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/generalReference> ?gr4
                 }
               }
             }
               .
             {
               SERVICE <http://159.90.11.58:7004/sparqlDB> {
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o1 .
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o2 .
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o3 .
                   ?drug <http://www4.wiwiss.fu-berlin.de/drugbank/resource/drugbank/target> ?o4
               }
             }
           }
         }
       }
   }
}
C10
Number of nodes
4
Number of edges
5
Colors used
3
Graph
Open
Decomposition
SELECT ?title ?actor ?news ?director ?film ?n ?genre
WHERE {
   {
       OPTIONAL {
           {
               OPTIONAL {
                   {
                     {
                         SERVICE <http://159.90.11.58:7009/sparqlNYT> {
                             ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                         }
                     }
                      UNION
                     {
                         SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
                             ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                         }
                     }
                   }
                    UNION
                   {
                     {
                       {
                           SERVICE <http://159.90.11.58:7008/sparql> {
                               ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                           }
                       }
                        UNION
                       {
                           SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
                               ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                           }
                       }
                     }
                      UNION
                     {
                       {
                           SERVICE <http://159.90.11.58:7004/sparqlDB> {
                               ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                           }
                       }
                        UNION
                       {
                           SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                               ?y <http://www.w3.org/2002/07/owl#sameAs> ?x
                           }
                       }
                     }
                   }
               }
           }
            .
           {
               {
                   SERVICE <http://159.90.11.58:7009/sparqlNYT> {
                       ?y <http://data.nytimes.com/elements/topicPage> ?news
                   }
               }
                 .
               {
                 {
                     SERVICE <http://159.90.11.58:7006/sparqlLMDB> {
                         ?film <http://data.linkedmdb.org/resource/movie/genre> ?genre
                     }
                 }
                   .
                 {
                   SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
                       ?x <http://dbpedia.org/ontology/director> ?director .
                       ?director <http://dbpedia.org/ontology/nationality> ?n
                   }
                 }
               }
           }
       }
   }
    .
   {
       {
         SERVICE <http://159.90.11.58:7006/sparqlLMDB> {
             ?film <http://data.linkedmdb.org/resource/movie/actor> ?actor .
             ?film <http://data.linkedmdb.org/resource/movie/production_company> <http://data.linkedmdb.org/resource/production_company/15> .
             ?film <http://purl.org/dc/terms/title> 'Tarzan'
         }
       }
         .
       {
         {
           {
               SERVICE <http://159.90.11.58:7009/sparqlNYT> {
                   ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
               }
           }
            UNION
           {
               SERVICE <http://159.90.11.58:7003/sparqlSWDF> {
                   ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
               }
           }
         }
          UNION
         {
           {
             {
                 SERVICE <http://159.90.11.58:7008/sparql> {
                     ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7007/sparqlDBPedia> {
                     ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
                 }
             }
           }
            UNION
           {
             {
                 SERVICE <http://159.90.11.58:7004/sparqlDB> {
                     ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
                 }
             }
              UNION
             {
                 SERVICE <http://159.90.11.58:7002/sparqlKegg> {
                     ?actor <http://www.w3.org/2002/07/owl#sameAs> ?x
                 }
             }
           }
         }
       }
   }

Ground Truth

FedBench

Query Answer Size
CD1 63
CD2 1
CD3 5
CD4 1
CD5 2
CD6 11
CD7 2
LD1 309
LD2 185
LD3 109
LD4 50
LD5 28
LD6 78
LD7 1216
LD8 0
LD9 0
LD10 3
LD11 376
LSD1 1159
LSD2 374
LSD3 9054
LSD4 3
LSD5 393
LSD6 28
LSD7 1619

Additonal Queries

Query Answer Size
C1 1248
C2 1614
C3 325
C4 94
C5 14600
C6 12
C7 4318
C8 658
C9 1000
C10 1000

Engines, side by side

Plots

Percentage of answer (PA)
Throughput

Result Tables

Throughput
FedBench, Federation 1
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
CD1 62.6707515914 17.1632618941 3.21 0.807630547807 71.3255092298 9.32743073873
CD2 2.6950467808 3.2477353063 0.35 0.989199777931 2.0757129983 0.0
CD3 0.0955776232814 0.180830045894 0.02 0.506296959064 1.65482641463 0.0
CD4 0.174932212425 0.0101622097974 0.003 0.332758756518 0.877314732986 0.555424103234
CD5 1.5240905311 3.48471642205 0.030 0.838913148181 2.78134287878 0.0
CD6 0.0 0.0 0.0 1.31895115449 3.15744823256 0.0
CD7 0.178797165098 0.0 0.0 0.0891613486397 0.180657801724 0.208179067479
LD1 255.076563122 310.905249987 3.40 23.9747886227 151.860448298 13.3063875491
LD10 0.0 0.0 0.0 0.0 0.0 0.0
LD11 0.0 0.0 0.0 6.93965786579 66.9403290772 0.0
LD2 153.500861327 54.3866000077 1376.34 174.843196926 344.609065889 147.670149779
LD3 5.73017457124 0.0 0.81 5.94709966926 24.1973048943 13.5112592591
LD4 158.785533922 115.290781639 5088 41.1330964251 99.2382819062 39.7978257576
LD5 1.0657541078 0.0 0.02 0.231988621075 22.0520859964 0.0
LD6 0.0 0.822563186847 0.55 45.0106793763 45.2716684425 0.0
LD7 535.412205168 0.0 2.06 64.097268997 117.600295598 45.9678612438
LD8 0.0 0.0 0.0 0.0 0.0 0.0
LD9 0.0 0.0 0.0 0.0 0.0 0.0
LSD1 2689.13979029 2979.05878575 1829.59 918.416944279 1490.84409921 663.106915317
LSD2 18.2091611229 4.5096502581 0 40.2853546744 279.319976207 5.31002348943
LSD3 311.452590447 332.663351032 121.15 121.198850442 127.263429025 0.0
LSD4 0.519776105176 0.376814264216 0.19 1.72278058155 6.30438945497 1.74569210038
LSD5 21.5245326189 20.9094694203 0 19.8226704039 39.4935893056 4.42135657949
LSD6 4.45218150825 1.82124578469 0 3.92144731495 23.6942996736 1.71006630715
LSD7 103.988714556 81.3826267441 6.00 19.0067799202 24.8779990268 32.2039340287
FedBench, Federation 2
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
CD1 17.7014462322 340.464874648 13.35 24.9595854414 108.760657461 21.2499800874
CD2 1.65393927636 1.88918060816 0.79 1.50875981306 2.18680100041 0.82813054688
CD3 1.37906623532 1.48904667921 0.11 3.54638856224 5.3485813387 0.942338627781
CD4 0.0 0.0 0.0 0.6716544417 1.20854959492 0.285145783643
CD5 0.449390645166 0.0 0.0 1.23854641688 2.24132285107 0.397290719146
CD6 0.0 0.0 0.0 1.9180149805 3.37602146261 0.363952998168
CD7 0.0 0.0 0.0 0.24693376008 0.462195857442 0.0467006022066
LD1 244.989205686 288.849297746 3.25 68.4370982909 172.44122091 20.2680406568
LD10 1.59465718306 2.53852643794 0.08 2.3176010534 3.5188599966 0.675522154951
LD11 2.90727556529 50.7532052023 0.0 33.2144440042 98.1150661156 9.83098833137
LD2 1000.23749552 1751.08150314 2083.49 262.380851904 343.918684189 154.332701506
LD3 178.735081175 4.45272513371 0.92 16.4584617994 39.614194209 4.41122330896
LD4 178.258312169 126.595733121 396.78 64.1450938218 99.3098066181 40.8807297102
LD5 26.3813918549 0.0 0.0 16.266963194 41.6991150694 8.94761674747
LD6 0.0 0.0 0.0 40.3435625673 81.9336227779 15.7078090286
LD7 1277.33504704 0.0 4.11 124.351706174 506.54341147 55.2025272484
LD8 0.0 0.0 0.0 0.0 0.0 0.0
LD9 0.0 0.0 0.0 0.0 0.0 0.0
LSD1 3199.73982918 2443.22575872 6574.36 1125.4918092 1492.05304261 773.129085022
LSD2 61.1368848495 83.9270251299 8.45 189.334261473 411.714764888 107.925582096
LSD3 335.694715978 351.973151621 289.93 221.743511981 252.607022938 32.9132934613
LSD4 0.752848960618 0.29940852186 0.43 2.39627912363 6.24652474749 1.79295225053
LSD5 21.8205914154 21.3319532032 0.0 22.533652871 39.7688669372 4.52846160135
LSD6 3.23533953906 0.0 0.0 6.04541910159 25.9447827444 1.93856198284
LSD7 103.21 63.0820775936 59.91 20.369801754 23.6274558791 32.741012111
Additional Queries, Federation 1
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
C1 90.0754468849 99.3739439208 0.0 0.0 0.0 0.0
C10 0.0 0.0 0.0 0.0 0.0 0.0
C2 2306.64353847 6.7606122023 0.0 0.0 0.0 19.9853371608
C3 1.07853295435 0.0 0.0 0.0 0.0 2.94084322128
C4 7.31455860226 1.40359620342 0.0 0.0 0.0 0.0
C5 758.761262996 922.966738265 0.0 0.720945781467 2.43774373893 4871.06354552
C6 2.39901929891 0.923674467771 0.29 0.0 0.0 0.178722630189
C7 652.434242607 285.776705209 0.0 0.0 0.0 0.0
C8 101.290965015 45.3438575715 0.0 0.0 0.0 0.0
C9 0.0 0.0 0.0 0.0 0.0 0.0
Additional Queries, Federation 2
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
C1 169.843824607 95.876620681 0.0 0.0 0.0 0.255984337496
C10 0.0 0.0 0.0 0.0 0.0 0.0
C2 2400.53142982 6.32769408656 0.0 0.0 0.0 647.010732877
C3 1.06542308747 0.0 0.0 0.0 0.0 3.18605887894
C4 7.23259628334 1.20357579421 0.0 0.0 0.0 0.0
C5 754.207533897 924.544967983 0.0 5.40100900561 5.32753488607 148.457087937
C6 0.648439286856 0.259790553318 0.53 0.0 0.0 0.179079486505
C7 706.4955108 250.064889993 0.0 0.0 0.0 0.0
C8 104.940012997 67.2834869401 0.0 0.0 0.0 0.0
C9 0.0 0.0 0.0 0.0 0.0 0.0
Percentage of Answer
FedBench, Federation 1
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
CD1 77.7777777778 77.7777777778 77.7777777778 76.1904761905 76.1904761905 65.0793650794
CD2 100.0 100.0 100.0 100.0 100.0 0.0
CD3 40.0 40.0 40.0 40.0 0.0 0.0
CD4 100.0 100.0 100.0 100.0 100.0 100.0
CD5 100.0 100.0 100.0 100.0 100.0 0.0
CD6 0.0 0.0 0.0 100.0 100.0 0.0
CD7 50.0 0.0 0.0 50.0 50.0 50.0
LD1 100.0 100.0 100.0 100.0 100.0 99.6763754045
LD10 0.0 0.0 0.0 0.0 0.0 0.0
LD11 0.0 0.0 0.0 47.8723404255 47.8723404255 0.0
LD2 100.0 100.0 100.0 100.0 100.0 100.0
LD3 100.0 0.0 100 100.0 100.0 98.1651376147
LD4 100.0 100.0 100.0 100.0 100.0 100.0
LD5 57.1428571429 0.0 7.14 57.1428571429 57.1428571429 0.0
LD6 0.0 50.0 50.0 50.0 50.0 0.0
LD7 45.4769736842 0.0 27.71 100.0 100.0 45.4769736842
LD8 100.0 100.0 100.0 100.0 100.0 100.0
LD9 100.0 100.0 100.0 100.0 100.0 100.0
LSD1 100.0 100.0 100.0 100.0 100.0 100.0
LSD2 86.8983957219 86.8983957219 0 86.8983957219 86.8983957219 85.8288770053
LSD3 100.0 100.0 100 100.0 100.0 0.0
LSD4 100.0 100.0 100 100.0 100.0 0.00173611111111
LSD5 100.0 100.0 0 100.0 100.0 100.0
LSD6 100.0 100.0 0 100.0 100.0 100.0
LSD7 100.0 100.0 100 8.89 8.89 100.0
FedBench, Federation 2
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
CD1 96.8253968254 96.8253968254 96.8253968254 95.2380952381 95.2380952381 96.8253968254
CD2 100.0 100.0 100.0 100.0 100.0 100.0
CD3 60.0 60.0 100.0 80.0 80.0 60.0
CD4 0.0 0.0 0.0 100.0 100.0 100.0
CD5 100.0 0.0 0.0 100.0 100.0 100.0
CD6 0.0 0.0 0.0 100.0 100.0 100.0
CD7 0.0 0.0 0.0 50.0 50.0 50.0
LD1 100.0 100.0 100.0 100.0 100.0 99.6763754045
LD10 100.0 100.0 100.0 100.0 100.0 100.0
LD11 57.9787234043 100.0 0.0 100.0 100.0 100.0
LD2 100.0 100.0 100.0 100.0 100.0 100.0
LD3 100.0 100.0 100.0 100.0 100.0 98.1651376147
LD4 100.0 100.0 100.0 100.0 100.0 100.0
LD5 100.0 0.0 0.0 100.0 100.0 100.0
LD6 0.0 0.0 0.0 100.0 100.0 100.0
LD7 100.0 0.0 8.71 100.0 100.0 100.0
LD8 100.0 100.0 100.0 100.0 100.0 100.0
LD9 100.0 100.0 100.0 100.0 100.0 100.0
LSD1 100.0 100.0 100.0 100.0 100.0 100.0
LSD2 87.7005347594 87.7005347594 87.7005347594 87.7005347594 87.7005347594 87.7005347594
LSD3 100.0 100.0 100.0 100.0 100.0 100.0
LSD4 100.0 100.0 100.0 100.0 100.0 100.0
LSD5 100.0 100.0 0.0 100.0 100.0 100.0
LSD6 100.0 0.0 0.0 100.0 100.0 100.0
LSD7 100.0 100.0 100.0 8.83 8.83 100.0
Additional Queries, Federation 1
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
C1 100.0 100.0 0.0 0.0 0.0 0.0
C10 0.0 0.0 0.0 0.0 0.0 0.0
C2 100.0 100.0 0.0 0.0 0.0 100.0
C3 99.6923076923 0.0 0.0 0.0 0.0 51.3846153846
C4 100.0 100.0 0.0 0.0 0.0 0.0
C5 100.0 100.0 0.0 0.383561643836 0.383561643836 100.0
C6 100.0 100.0 100.0 0.0 0.0 100.0
C7 97.7999073645 100.0 0.0 0.0 0.0 0.0
C8 100.0 100.0 0.0 0.0 0.0 0.0
C9 0.0 0.0 0.0 0.0 0.0 0.0
Additional Queries, Federation 2
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
C1 100.0 100.0 0.0 0.0 0.0 2.08333333333
C10 0.0 0.0 0.0 0.0 0.0 0.0
C2 100.0 100.0 0.0 0.0 0.0 100.0
C3 98.4615384615 0.0 0.0 0.0 0.0 51.3846153846
C4 100.0 100.0 0.0 0.0 0.0 0.0
C5 100.0 100.0 0.0 0.383561643836 0.383561643836 100.0
C6 100.0 100.0 100.0 0.0 0.0 100.0
C7 95.0903195924 100.0 0.0 0.0 0.0 0.0
C8 100.0 100.0 0.0 0.0 0.0 0.0
C9 0.0 0.0 0.0 0.0 0.0 0.0
Answer Size
FedBench, Federation 1
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
CD1 49 49 49 48 48 41
CD2 1 1 1 1 1 0
CD3 2 2 2 2 2 0
CD4 1 1 1 1 1 1
CD5 2 2 2 2 2 0
CD6 0 0 0 11 11 0
CD7 1 0 0 1 1 1
LD1 309 309 309 309 309 308
LD10 0 0 0 0 0 0
LD11 0 0 0 180 180 0
LD2 185 185 185 185 185 185
LD3 109 0 109 109 109 107
LD4 50 50 50 50 50 50
LD5 16 0 2 16 16 0
LD6 0 39 39 39 39 0
LD7 553 0 337 1216 1216 553
LD8 0 0 0 0 0 0
LD9 0 0 0 0 0 0
LSD1 1159 1159 1159 1159 1159 1159
LSD2 325 325 0 325 325 321
LSD3 9054 9054 9054 9054 9054 0
LSD4 3 3 3 3 3 3
LSD5 393 393 0 393 393 393
LSD6 28 28 0 28 28 28
LSD7 1619 1619 1619 144 144 1619
FedBench, Federation 2
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
CD1 61 61 61 60 60 61
CD2 1 1 1 1 1 1
CD3 3 3 5 4 4 3
CD4 0 0 0 1 1 1
CD5 2 0 0 2 2 2
CD6 0 0 0 11 11 11
CD7 0 0 0 1 1 1
LD1 309 309 309 309 309 308
LD10 3 3 185 3 3 3
LD11 218 376 109 376 376 376
LD2 185 185 50 185 185 185
LD3 109 109 28 109 109 107
LD4 50 50 0 50 50 50
LD5 28 0 106 28 28 28
LD6 0 0 0 78 78 78
LD7 1216 0 0 1216 1216 1216
LD8 0 0 3 0 0 0
LD9 0 0 0 0 0 0
LSD1 1159 1159 1159 1159 1159 1159
LSD2 328 328 328 328 328 328
LSD3 9054 9054 9054 9054 9054 9054
LSD4 3 3 3 3 3 3
LSD5 393 393 0 393 393 393
LSD6 28 0 0 28 28 28
LSD7 1619 1619 1619 143 143 1619
Additional Queries, Federation 1
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
C1 1248 1248 0 0 0 0
C11 0 0 0 0 0 0
C2 1614 1614 0 0 0 1614
C3 324 0 0 0 0 167
C4 94 94 0 0 0 0
C5 14600 14600 0 56 56 14600
C6 12 12 12 0 0 12
C7 4223 4318 0 0 0 0
C8 658 658 0 0 0 0
C9 0 0 0 0 0 0
Additional Queries, Federation 2
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
C1 1248 1248 0 0 0 26
C11 0 0 0 0 0 0
C2 1614 1614 0 0 0 1614
C3 320 0 0 0 0 167
C4 94 94 0 0 0 0
C5 14600 14600 0 56 56 14600
C6 12 12 12 0 0 12
C7 4106 4318 0 0 0 0
C8 658 658 0 0 0 0
C9 0 0 0 0 0 0
Execution Time
FedBench, Federation 1
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
CD1 0.781863927841 2.85493516922 15.22 59.4331159592 0.672971010208 4.39563703537
CD2 0.371051073074 0.307906866074 2.83 1.01091814041 0.481762170792 1.32471179962
CD3 20.9254000187 11.0601089001 73.8637869358 3.95025086403 1.20858597755 2.44482493401
CD4 5.71650004387 98.4037940502 292.823706865 3.00518012047 1.13984179497 1.80042600632
CD5 1.31225800514 0.573934793472 65.2486791611 2.38403701782 0.719077110291 2.2294921875
CD6 4.95038104057 79.3430039883 300.00 8.33996009827 3.48382592201 300.014497995
CD7 5.59292984009 262.970053196 300.00 11.2156221867 5.5353269577 4.8035569191
LD1 1.21140098572 0.993871927261 90.6952090263 12.8885390759 2.03476285934 23.1467781067
LD10 0.57560801506 0.877958059311 0.134413957596 1.34544706345 0.382160902023 3.49069786072
LD11 299.914185047 300.00 133.518763065 25.9378781319 2.68896198273 4.64599704742
LD2 1.20520496368 3.40157318115 0.982525110245 1.0580909252 0.536840200424 1.25279211998
LD3 19.022108078 22.303388834 77.4710149765 18.3282618523 4.5046339035 7.91932106018
LD4 0.314890146255 0.43368601799 70.0036869049 1.21556615829 0.503837823868 1.25635004044
LD5 15.0128438473 0.457794189453 163.030003786 68.9688999653 0.725554943085 1.74244117737
LD6 47.6887769699 47.4127709866 133.261110067 0.866461038589 0.861465930939 300.038832903
LD7 1.03284907341 5.70785713196 1.1754989624 18.9711670876 10.3401100636 12.0301442146
LD8 36.3154840469 41.6267809868 11.239233017 22.0541229248 2.28824305534 13.7549369335
LD9 0.320390939713 0.480330944061 300.00 2.49160003662 0.38395190239 3.00472187996
LSD1 0.430992841721 0.389049053192 0.633472919464 1.26195406914 0.777411937714 1.74783277512
LSD2 17.8481588364 72.0676729679 300.00 8.06744790077 1.16354012489 60.4517099857
LSD3 29.070235014 27.2167041302 74.7300131321 74.7036788464 71.1437690258 11.7589519024
LSD4 5.77171587944 7.96148204803 15.1462469101 1.74137091637 0.475858926773 1.71851611137
LSD5 18.2582361698 18.7953119278 300.00 19.8257849216 9.95098209381 88.8867461681
LSD6 6.28905177116 15.3740918636 300.00 7.14022088051 1.18171882629 16.3736341
LSD7 15.5689971447 19.8936808109 269.82814002 7.57624387741 5.78824687004 50.2733609676
FedBench, Federation 2
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
CD1 3.44604611397 0.179166793823 4.56642794609 2.40388607979 0.551670074463 2.87059092522
CD2 0.604617118835 0.529330015182 1.25865793228 0.662796020508 0.457288980484 1.20753908157
CD3 2.17538499832 2.01471185684 43.9977359772 1.12790799141 0.747861862183 3.18356895447
CD4 1.22553396225 29.6640532017 300.00 1.48886084557 0.827438116074 3.50697803497
CD5 4.45047092438 32.4540319443 32.310131073 1.61479616165 0.892330169678 5.03409695625
CD6 0.969762086868 5.01020097733 300.00 5.73509597778 3.25827312469 30.2236828804
CD7 0.131561994553 5.57210993767 300.00 4.04966902733 2.16358494759 21.413000106
LD1 1.26128005981 1.0697619915 94.8675909042 4.5150949955 1.79191493988 15.1963381767
LD10 1.88128209114 1.18178796768 34.234400034 1.2944419384 0.852548837662 4.44100904465
LD11 74.9842920303 7.40839910507 300.00 11.3203761578 3.83223509789 38.2464089394
LD2 0.184956073761 0.105648994446 0.0887930393219 0.705081939697 0.537917852402 1.19870901108
LD3 0.609841108322 24.479391098 118.118646145 6.62273311615 2.75153899193 24.2563099861
LD4 0.280491828918 0.394958019257 0.126013994217 0.779482841492 0.50347495079 1.22307014465
LD5 1.06135416031 2.8903028965 29.1750431061 1.72128009796 0.671477079391 3.12932491302
LD6 4.18774318695 40.2965710163 47.8154470921 1.93339395523 0.951990127563 4.9656829834
LD7 0.951982021332 0.111642122269 25.7496080399 9.77871584892 2.40058398247 22.0279769897
LD8 34.4453790188 38.9570429325 56.5577771664 10.2804470062 1.39781308174 10.6529450417
LD9 0.316625118256 0.3912358284 0.602376937866 0.693208932877 0.375385046005 2.93584609032
LSD1 0.362216949463 0.47437286377 0.176290988922 1.02977204323 0.776782035828 1.49910283089
LSD2 5.36501002312 3.90815711021 38.7971510887 1.73238587379 0.796668052673 3.03913116455
LSD3 26.9709339142 25.7235529423 31.228178978 40.8309578896 35.8422338963 275.086417913
LSD4 3.98486304283 10.0197548866 6.92795991898 1.25194096565 0.480267047882 1.67321801186
LSD5 18.0105109215 18.4230668545 300.00 17.4405810833 9.88210201263 86.7844390869
LSD6 8.6544239521 10.5790879726 300.00 4.63160610199 1.07921504974 14.443696022
LSD7 15.6857068539 25.6649758816 27.022974968 7.020195961 6.05228090286 49.4486851692
Additional Queries, Federation 1
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
C1 13.8550519943 12.5586240292 300.00 442.059636116 300.909683943 300.087934971
C11 300.259046078 301.019114017 300.00 4.34081101418 2.54642987251 62.4471011162
C2 0.699717998505 238.735775948 300.00 244.051062822 243.318871021 80.7592079639
C3 300.408066988 300.00 300.00 178.022933006 81.0072889328 56.7864341736
C4 12.8510830402 66.9708280563 300.00 402.436640024 300.446490049 300.297004938
C5 19.2418889999 15.8185548782 300.00 77.6757440567 22.9720618725 2.99729204178
C6 5.00204396248 12.991590023 41.13 300.417415857 300.150874138 67.1431479454
C7 6.47268295288 15.1096990108 300.00 300.363509893 300.322718143 300.376769066
C8 6.49613714218 14.5113370419 300.00 301.026324034 301.126795053 300.054140091
C9 300.259046078 300.00 300.00 300.322256088 248.439836025 300.045740843
Additional Queries, Federation 2
Query Fed-DSATUR ANAPSID ANAPSID EG FedX Warm FedX SPLENDID
C1 7.34792685509 13.0167291164 300.000 307.044473886 307.044473886 101.568714142
C11 299.127578974 300.00 300.000 1.19428491592 1.22196507454 61.7354869843
C2 0.672351121902 255.069220781 244.630 241.441964149 241.250936031 2.49454903603
C3 300.35016489 300.00 300.000 111.833279133 76.0814530849 52.4158549309
C4 12.9967160225 78.1006069183 300.000 315.970031977 315.970031977 300.072814941
C5 19.3580670357 15.7915520668 300.000 10.3684329987 10.5114281178 98.3449170589
C6 18.5059731007 46.1910560131 22.38 300.162595987 300.162595987 67.0093500614
C7 5.81178498268 17.2675180435 300.000 300.189295053 300.189295053 300.379285097
C8 6.27024888992 9.77951693535 300.000 300.132927895 300.132927895 300.093693018
C9 300.00 300.00 300.000 243.409970999 243.038452864 300.055661917
